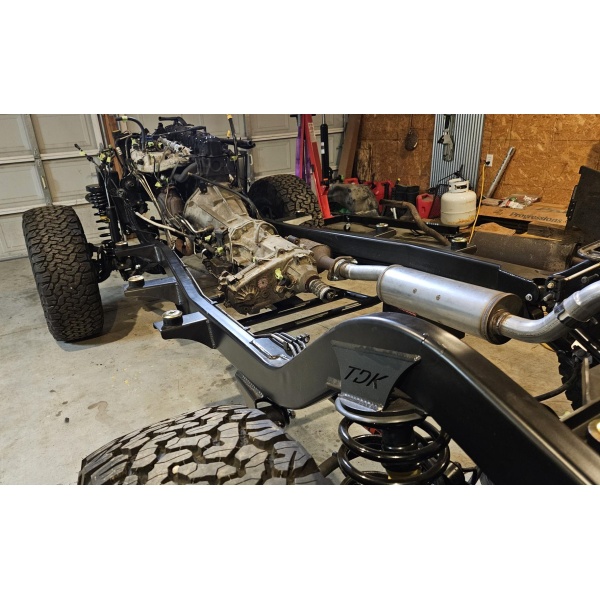

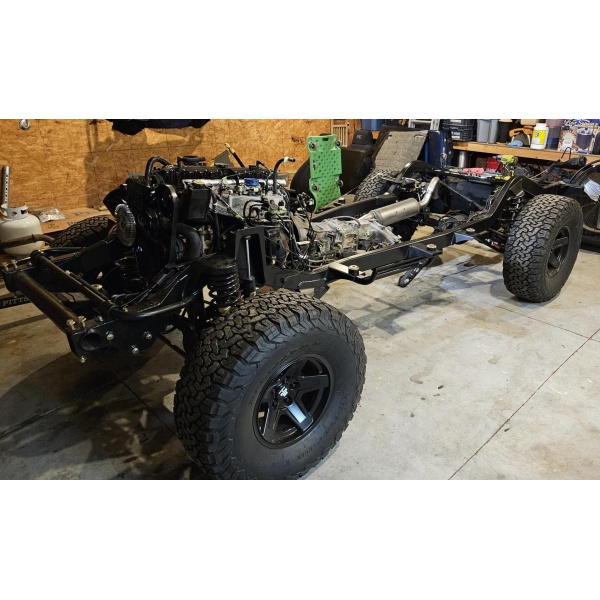

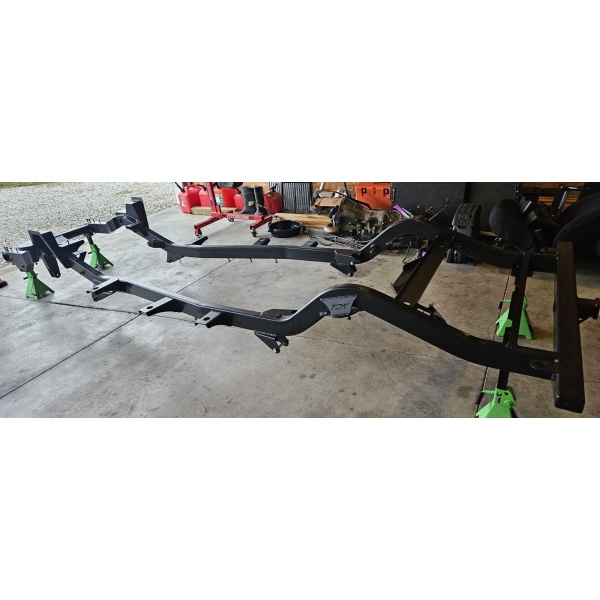

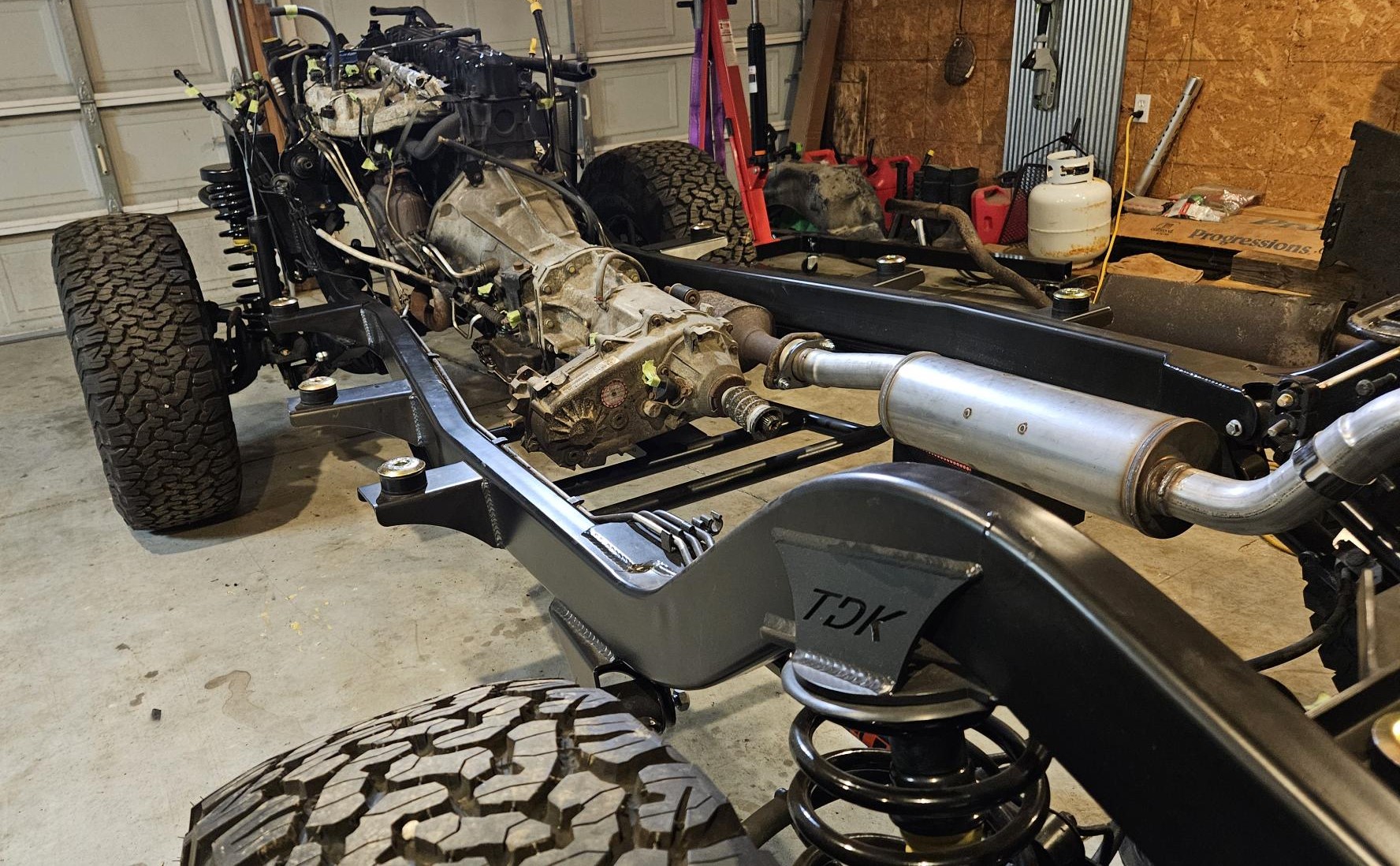

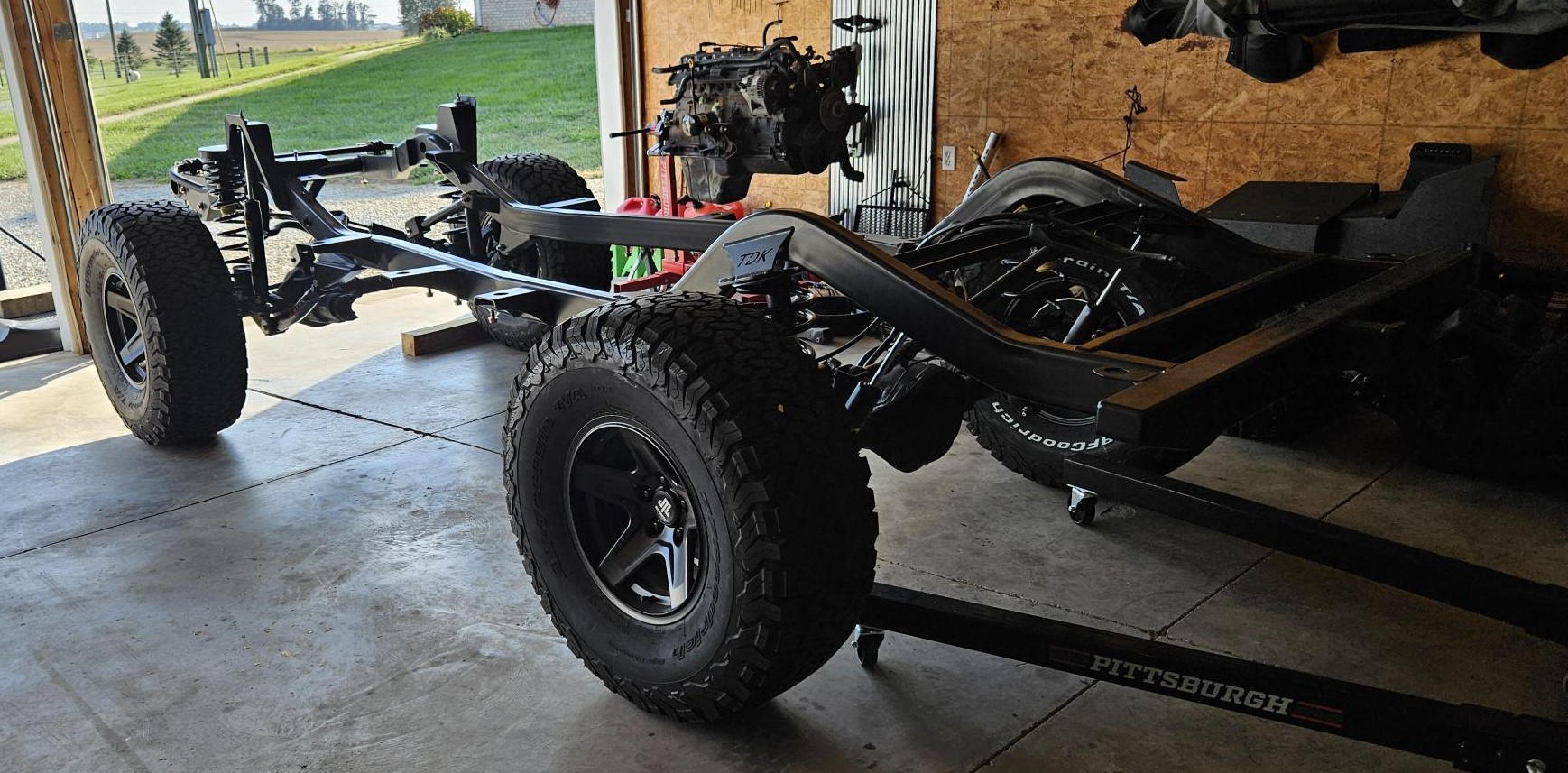

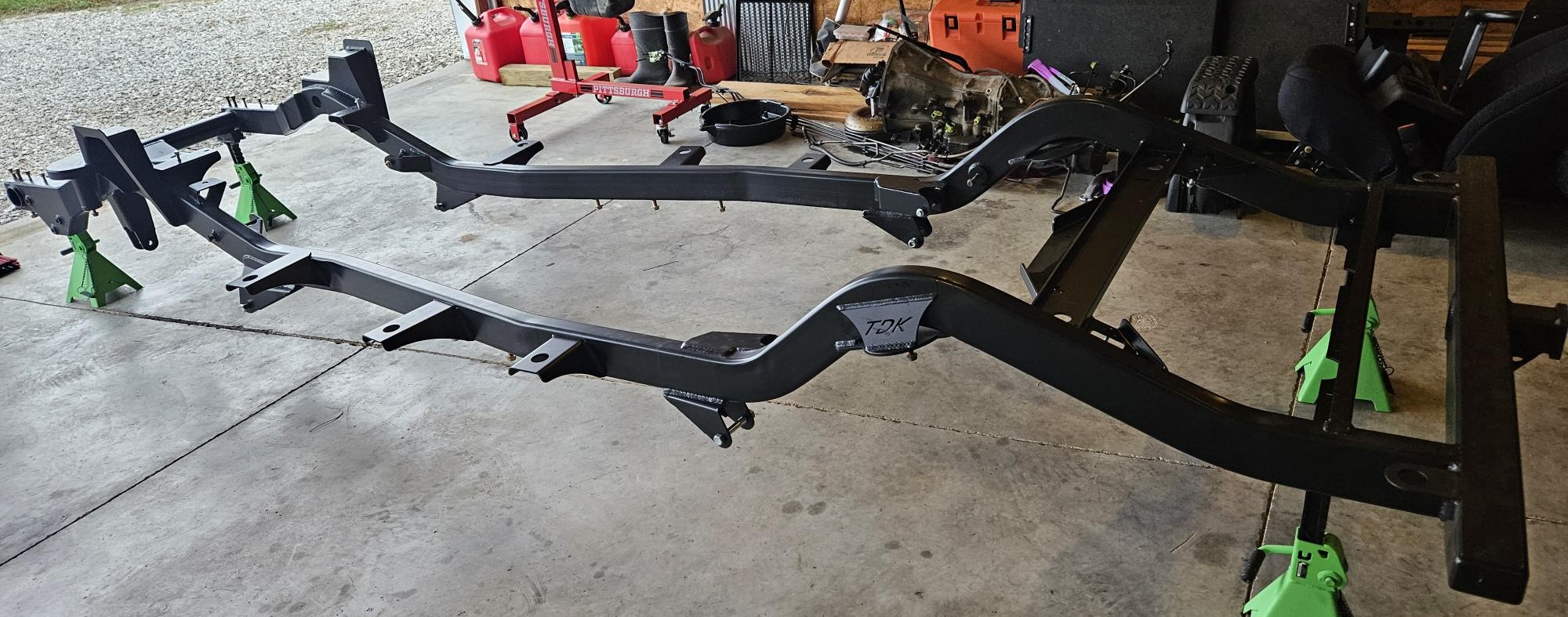

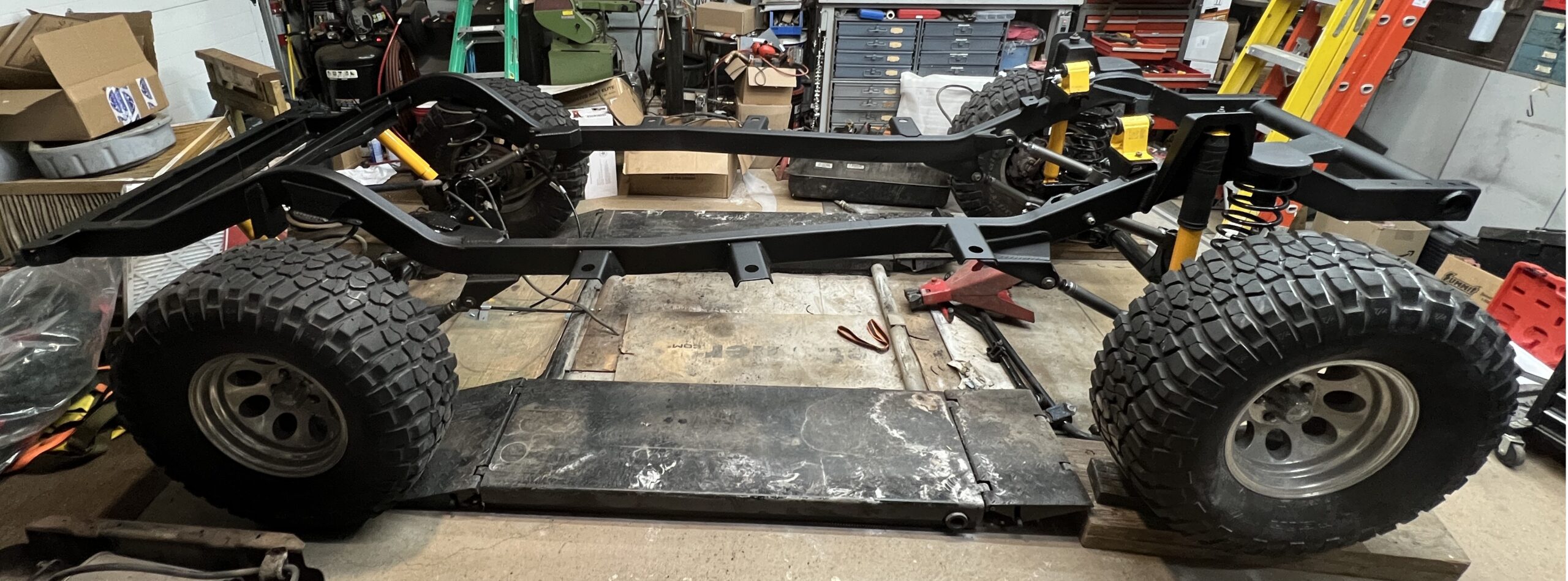

2004-2006 LJ Wrangler Jeep Frame

Description

Don’t spend hours sanding, grinding and painting that old frame only to have it rust again. Throttle Down Kustoms’ frames are better than OE. Start with a solid frame for your project!

TDK FRAME MANUFACTURING PROCESS

• TDK frames are CNC mandrel bent for better than OEM precision.
• Brackets are CNC laser cut out of 3/16″ and 1/4″ P&O steel plate.
• Frames and brackets are hand welded in Montana.

STEEL

• Jeep frames are made from 2″ x 4″ rectangular 3/16″ wall A500 tubing.
• Brackets are made with 3/16″ and 1/4″ P&O steel.

OPTIONS

You can have the frame customized to meet your needs. Contact us to learn more.

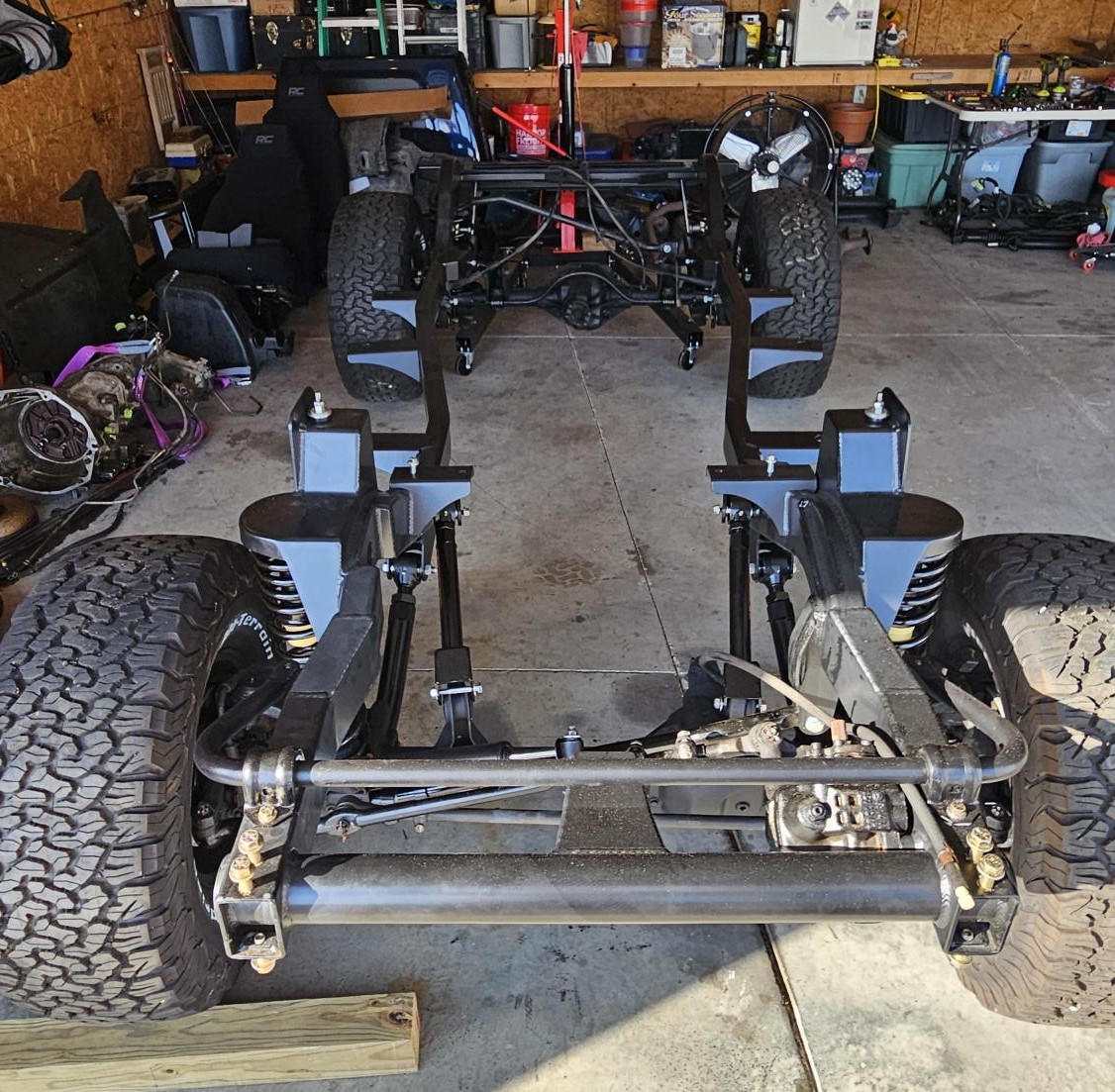

INCLUDED MOUNTING POINTS

• Steering Box
• Front and Rear Upper and Lower Control Arm mounts
• TDK Skid Plate included with frame.
• Sway Bar, Front and Rear
• Body Mounts, Grille Mount

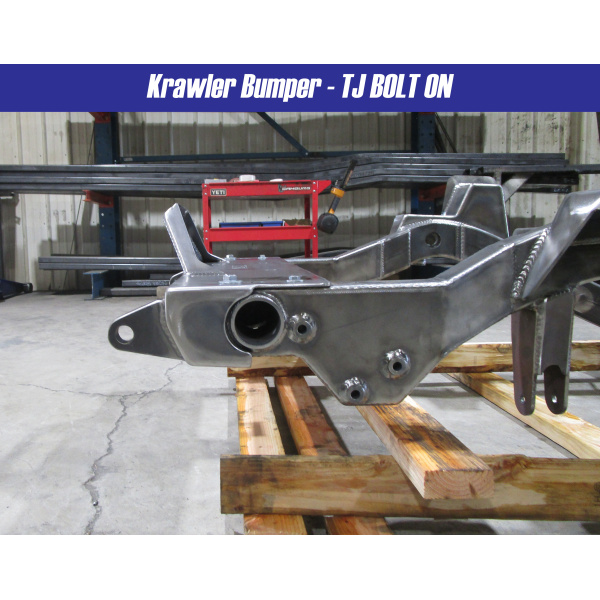

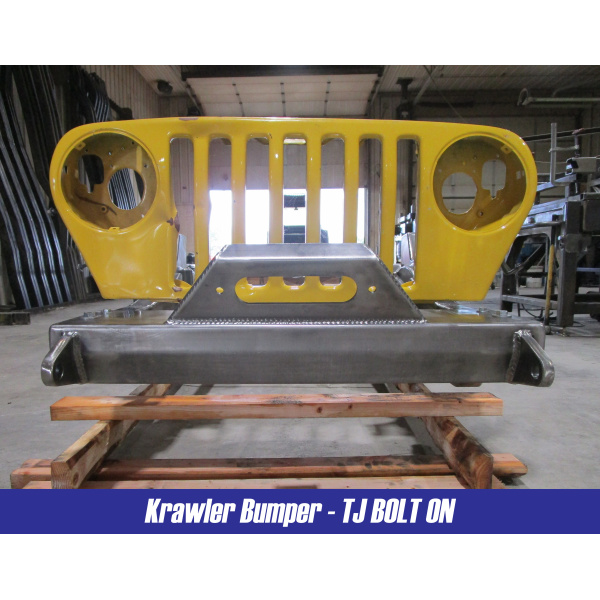

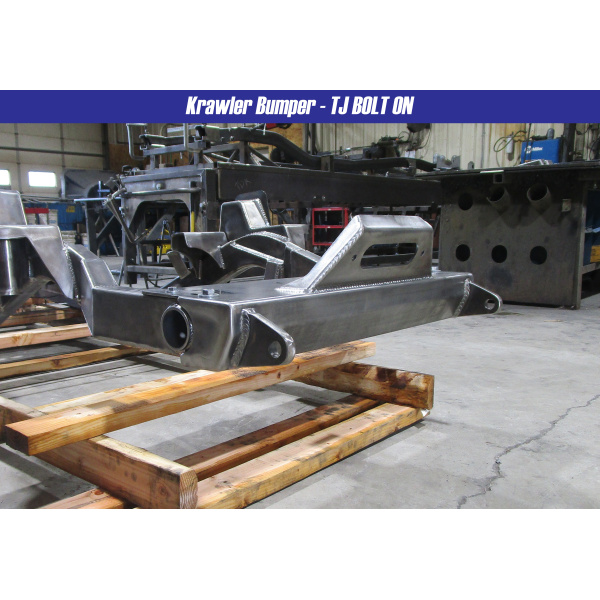

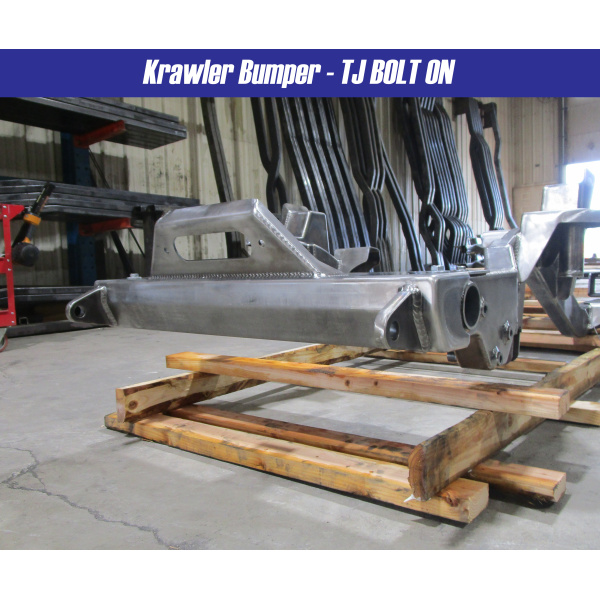

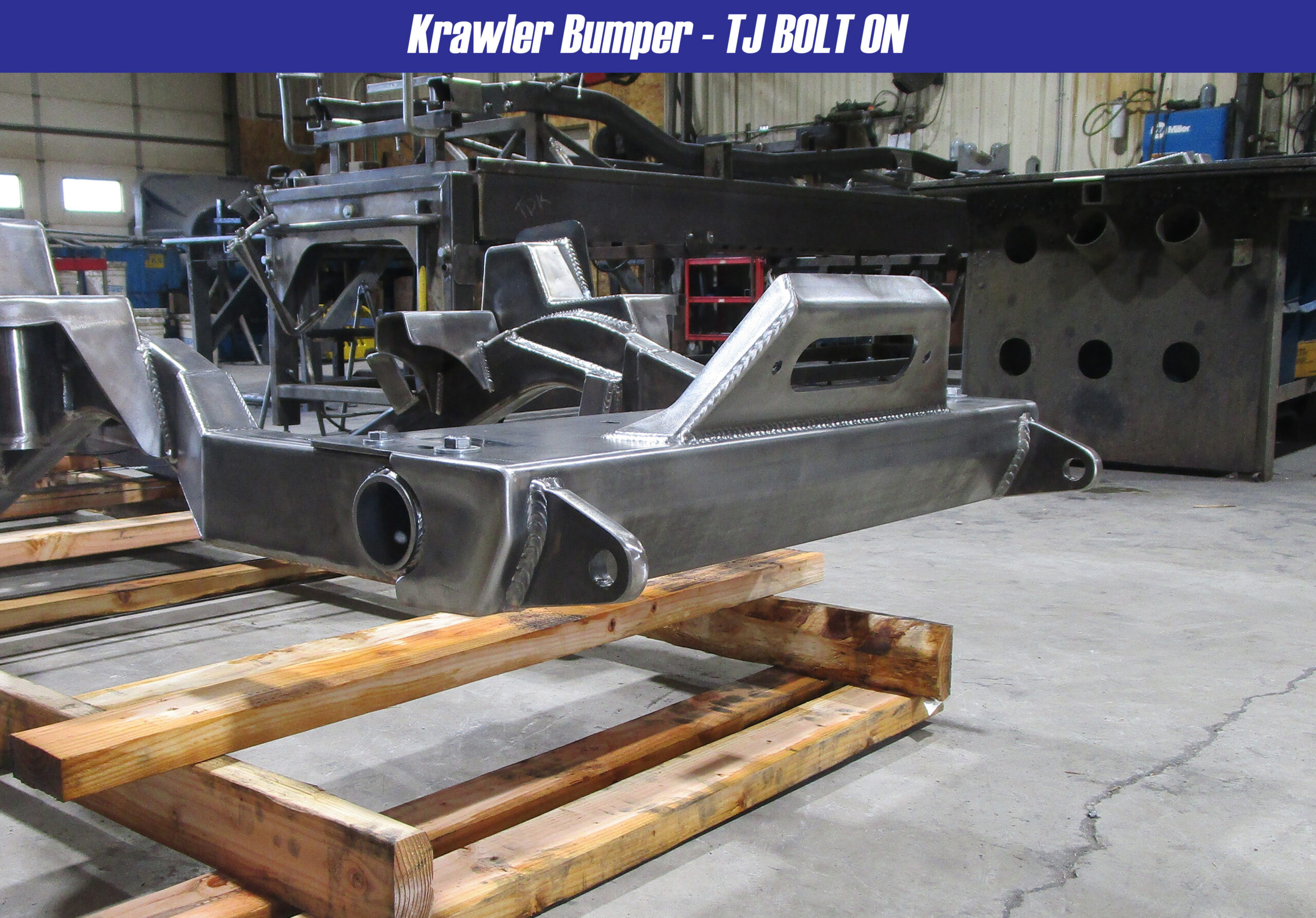

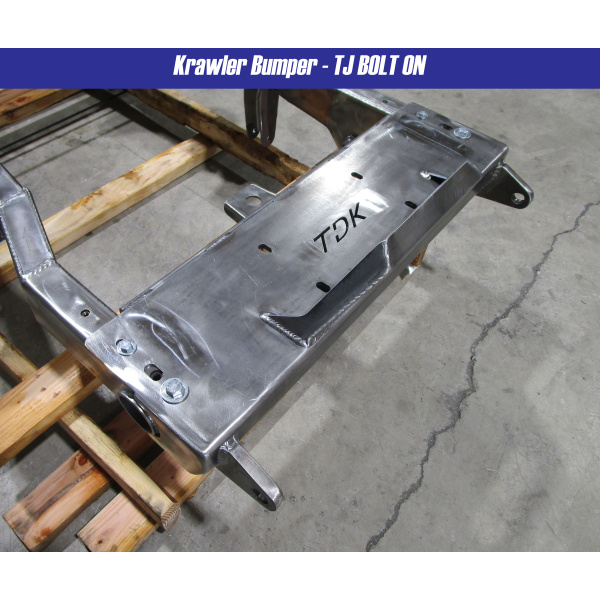

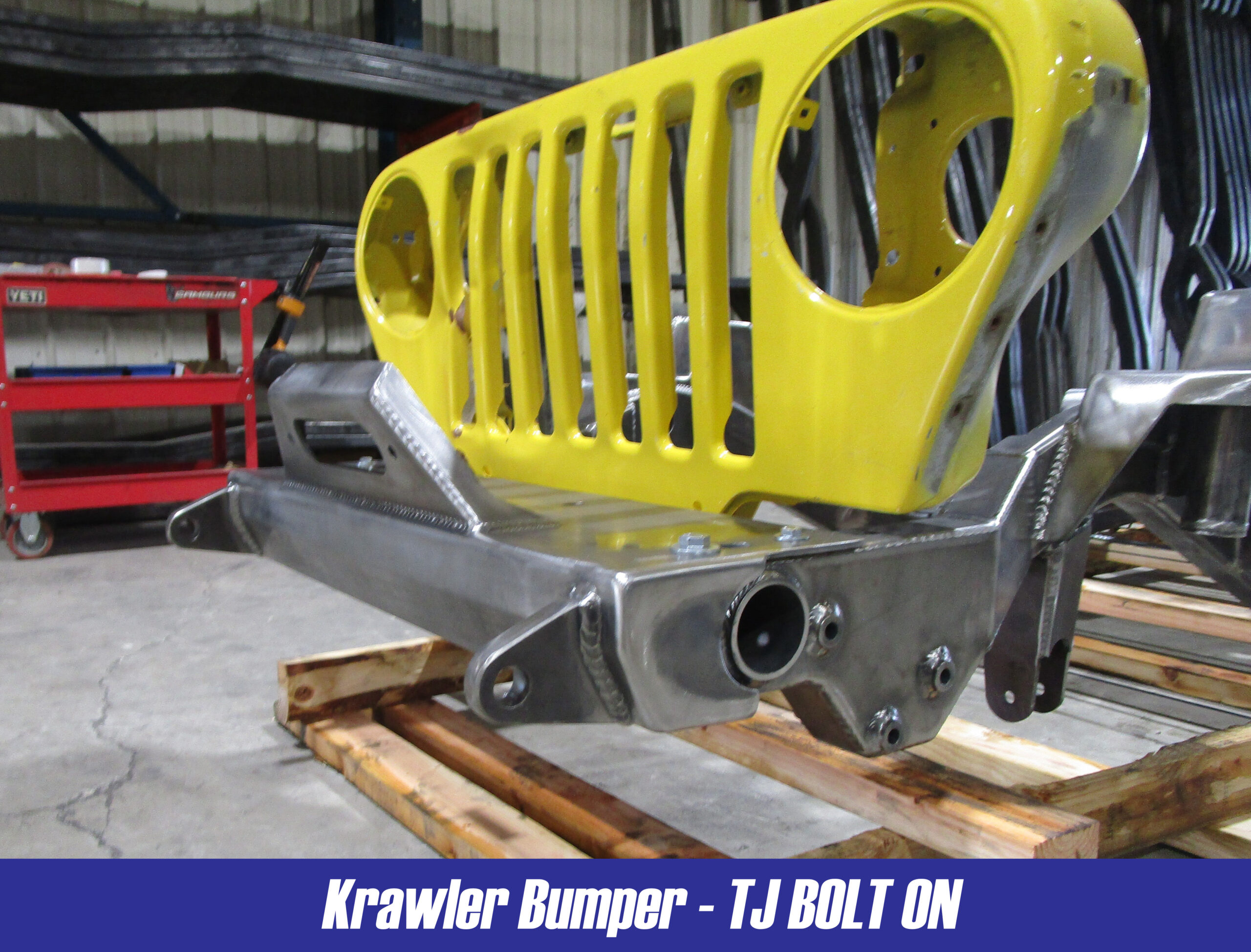

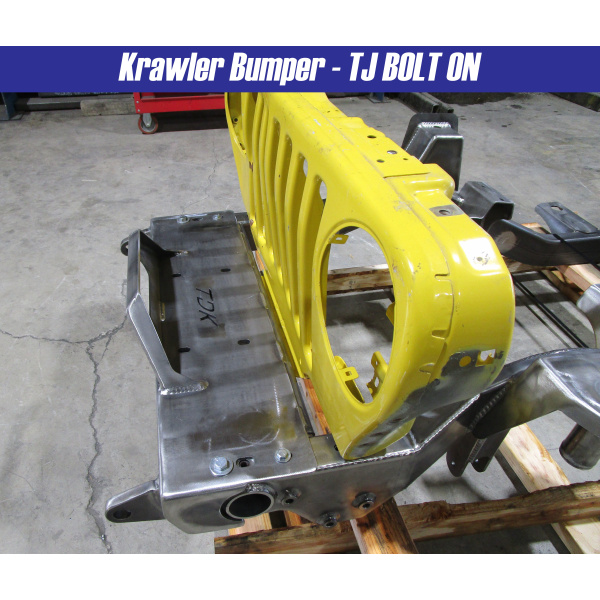

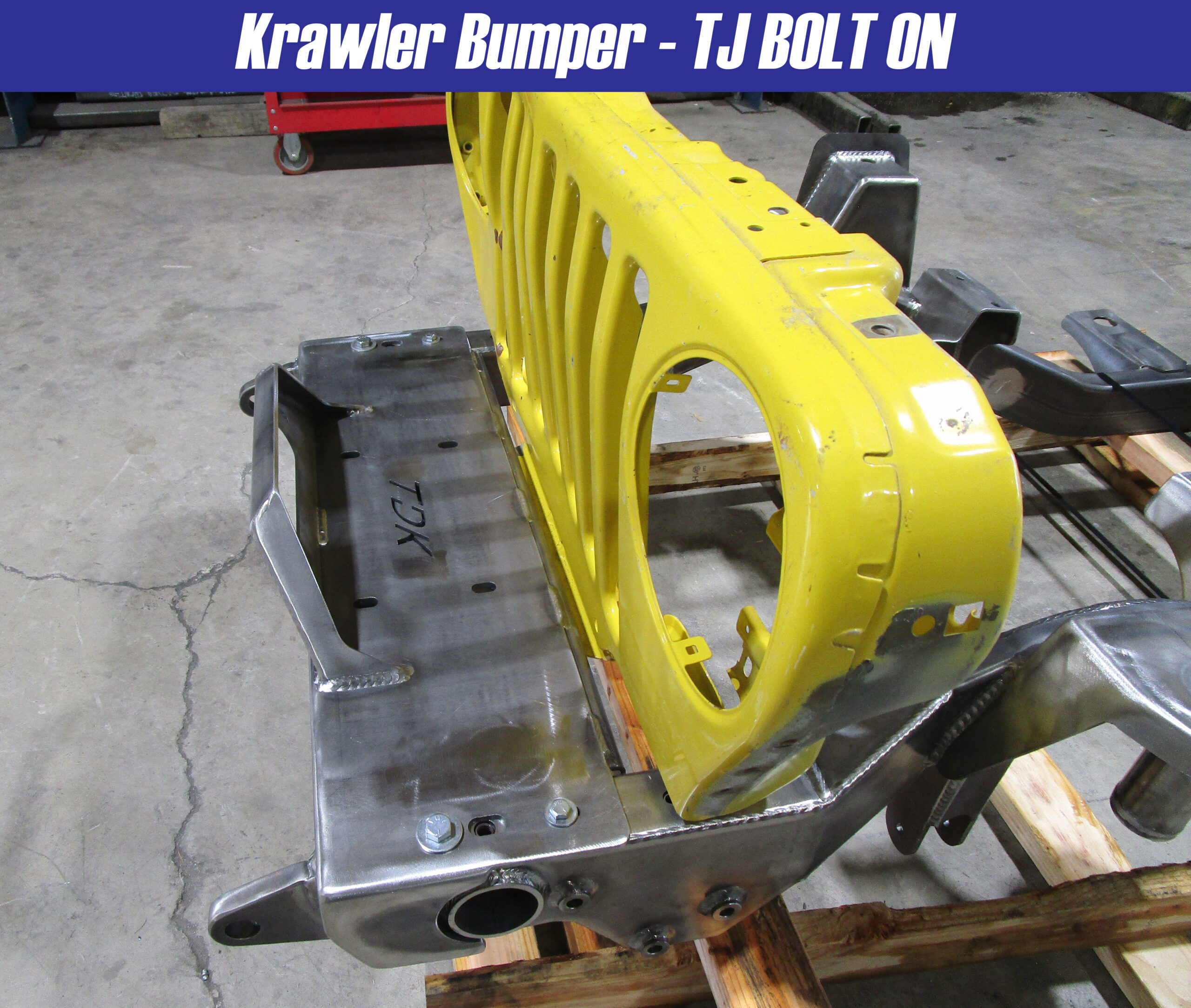

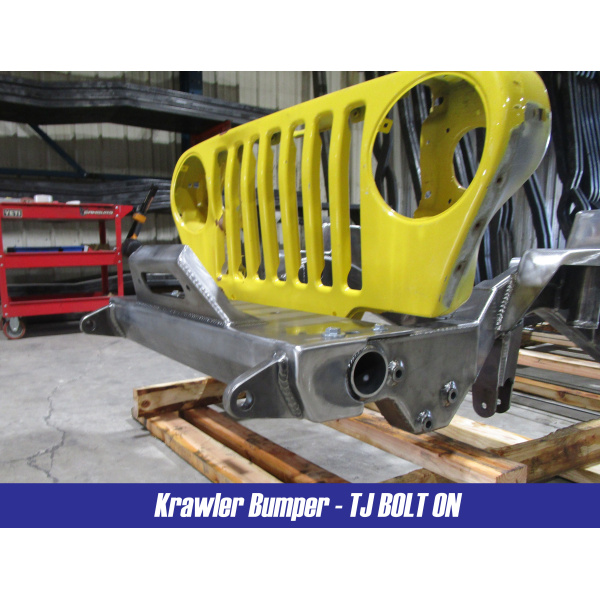

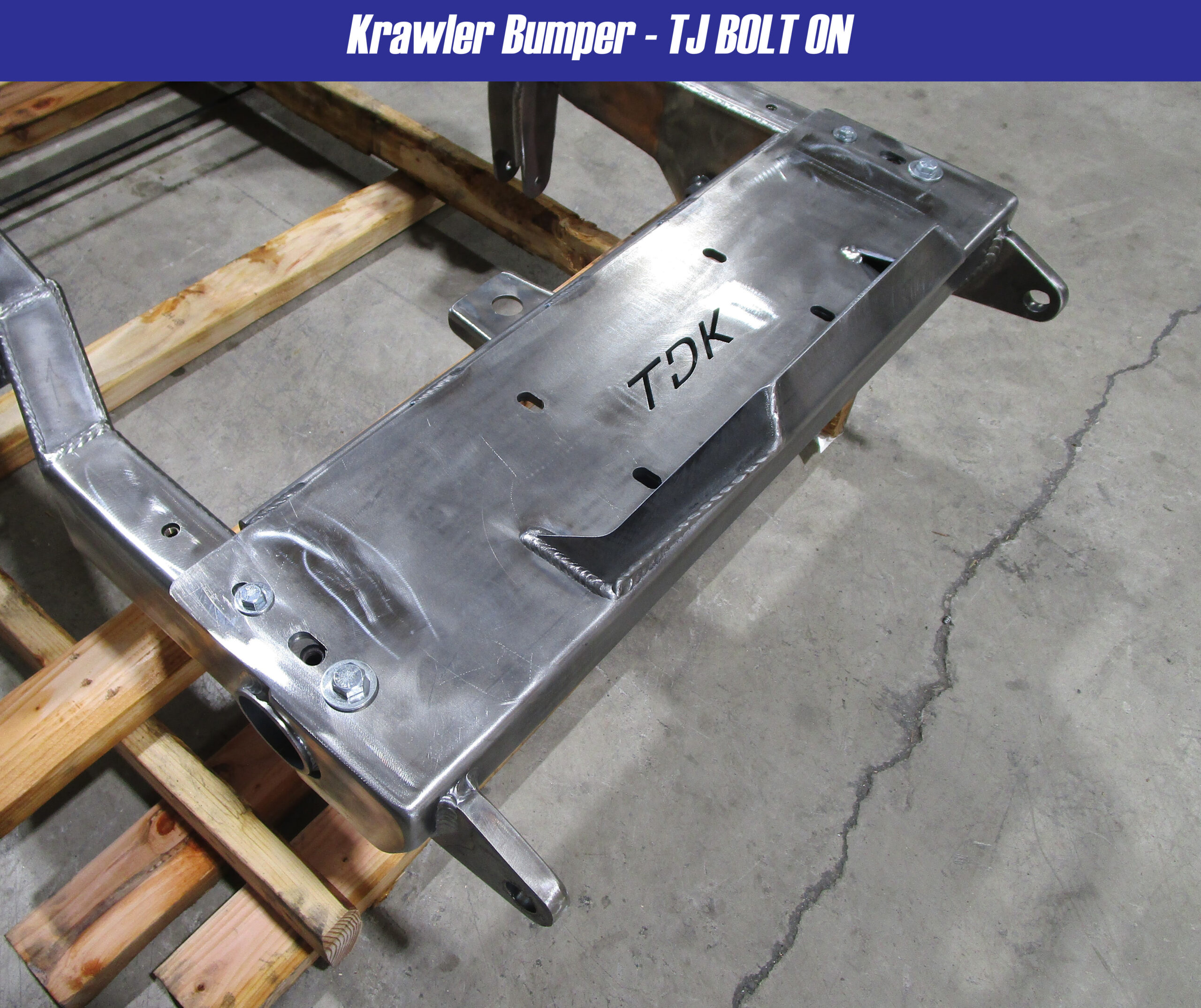

• Front Bumper
• Rear Crossmember Standard
• Gas Tank
• Front and Rear Bump Stop Holes
• Motor Mount welded in (6cy)
• Steering Shaft Idler Mounting location
• Rear Coil Spring Mount
• Rear Shock Mounts with 5/16″ nuts welded in.
• Rear Track Bar Mount set up for stock rear track bar.

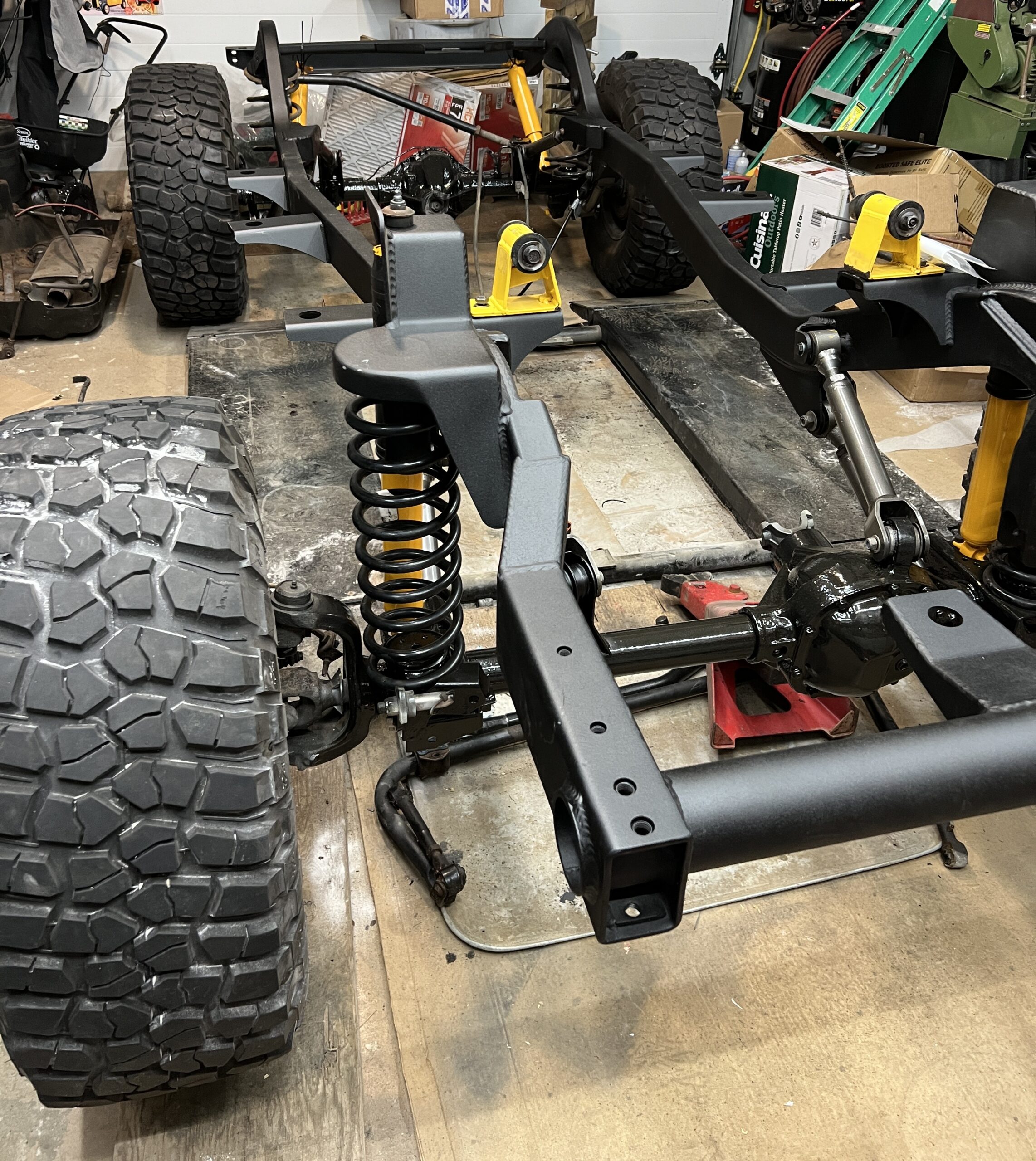

• Front Coil Spring Mount with Shock Mounts welded to frame
• Front Track Bar Mount, set up for Adjustable track bar comes with the TDK Frame.

NOTE:

• JEEP LJ AFTERMARKET PARTS NOTICE : Thank you for your interest in Throttle Down Kustoms’ replacement LJ Frame. As one of the most popular Jeep platforms in the 4×4 world, there is a variety of aftermarket parts available for the LJ’s. With this huge variety comes many different designs and options for just about anything you could be looking for. The one we see the most however is aftermarket suspension kits. In the hundreds of aftermarket suspension kits we have installed on our frames, most have required modification for proper fitment , some more than others. If you are planning on installing your own suspension kit, Throttle Down Kustoms HIGHLY recommends checking with us for suggestions on what suspension kit to purchase for best fitment and easiest installation. THROTTLE DOWN KUSTOMS HOLDS NO RESPONSIBILITY IN THE FITMENT OF AFTERMARKET PARTS AND ACCESSORIES FROM OTHER MANUFACTURERS.
• IF YOU ARE PLANNING ON GOING TO LONG ARM SUSPENISION PLEASE CALL TO ORDER! Most Long Arm Suspension Kits utilize a different Belly Pan that incorporates the control arm mounts. MOST LONG ARM LIFT KITS WILL NOT WORK WITH OUR LJ FRAME WITHOUT MODIFICATIONS. THERE ARE SOME THAT WILL WORK, PLEASE CALL FOR LISTINGS OF WHAT LONG ARM KITS WILL WORK!
• All frames are shipped bare metal.
• Some stock running boards do not work the same. You may have to modify them to work.
